Filling waffle pockets with compound adds value and creates new product variants without changing your base waffle. FoodJet depositors allow you to fill selected pockets or all pockets inline with controlled portions. Depending on how consistently waffles are presented on the conveyor, depositing can be guided by the FoodJet Control Platform (FJCP) or supported by vision guidance for higher positional accuracy.

Get in touch

FoodJet enables depositing of compound into waffle pockets with controlled portions per product. For aligned waffles, depositing positions can be defined via FJCP. If products shift or rotate, vision guidance detects pocket position and orientation per piece.

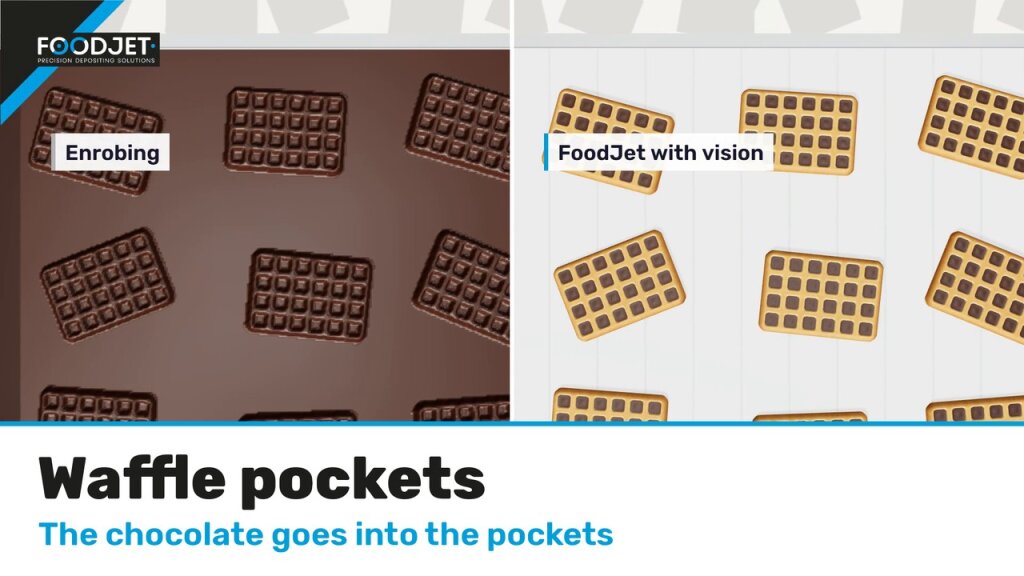

This is an example of cavity depositing in practice.

Filling each pocket

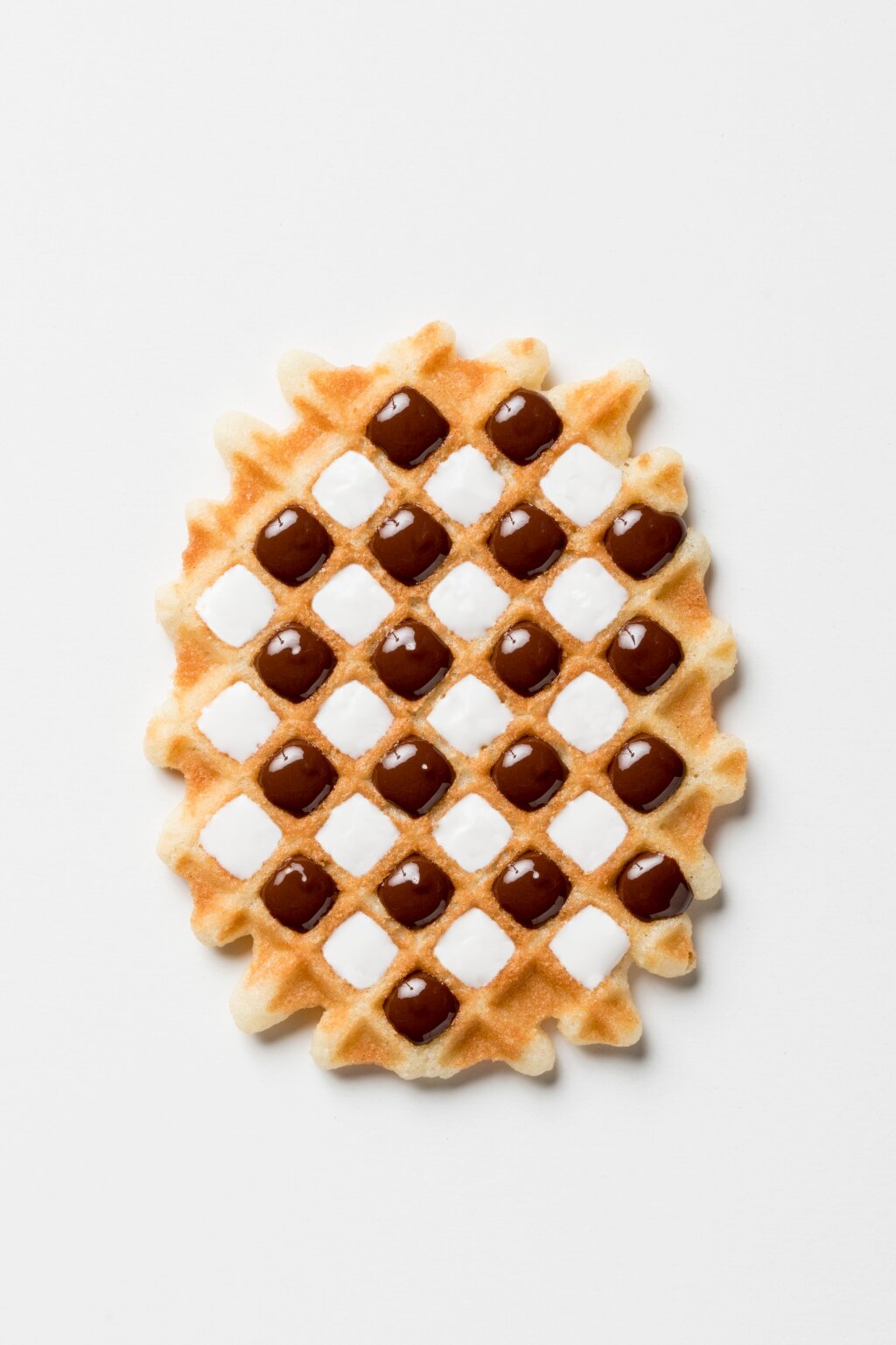

Waffle with dark and white compound in alternating cavities, forming a checkerboard pattern

Each pocket of your waffle can be filled with materials such as compound chocolate and other fillings. With FJCP, you can define which pockets are filled and which are left empty, enabling patterns and selective filling.

Waffles not aligned: vision guidance

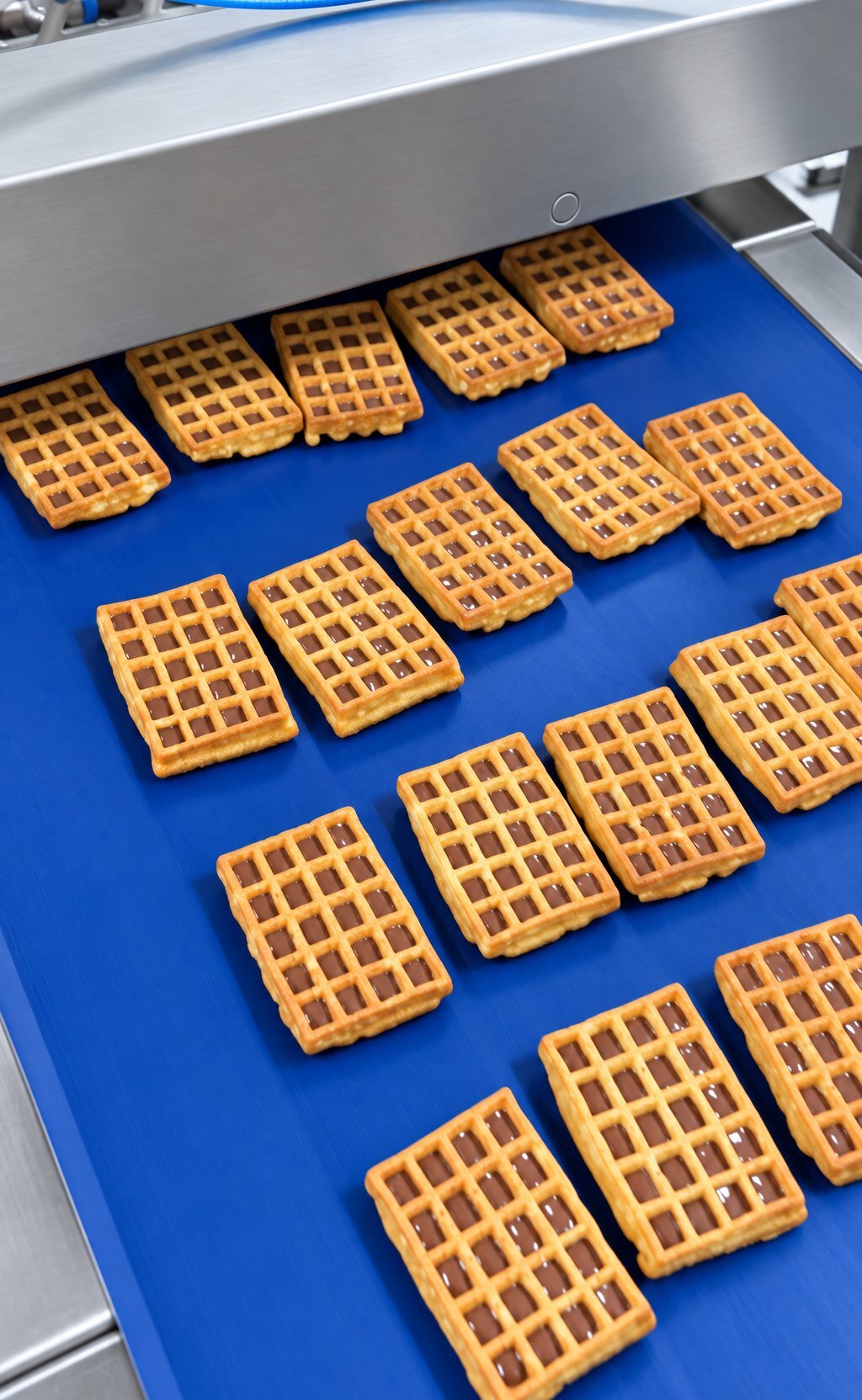

Waffles with compound deposited in the cavities on a blue conveyor

Whether products are aligned or not, vision guidance can detect pocket positions and compensate for product shift and rotation. You do not have to rely on perfect upstream alignment.

How waffle pockets are filled

The depositor is typically placed when waffles are stable on the conveyor and ready for filling. The setup is tuned to pocket geometry, line speed, and compound characteristics such as viscosity and temperature.

Typical system setup

A waffle pocket filling application typically comprises:

  • Platform / frame with integrated supply system (temperature managed where required)
  • Depositing head (multi-nozzle)
  • Controller (FJCP + optional vision)

Discuss your waffle pocket filling application

Share your waffle format, pocket layout and compound. We advise on the right depositing setup and on whether FJCP alone or vision guidance fits your line.

Request a trial
MDLVW300 mobile depositor large with vision and heated supply unit, 300 mm working width, 3D render

MDLVW300

Mobile Depositor Large with Vision and integrated Warm supply unit: 300 mm range for precise decoration, pocket and surface filling

MDLVW600 mobile depositor large with vision and heated supply unit, 600 mm working width, 3D render

MDLVW600

Mobile Depositor Large with Vision and integrated Warm supply unit: 600 mm range for precise decoration, pocket and surface filling

MDSUW4 mobile depositor with integrated supply unit for warm materials, 3D render

MDSUW4

Mobile depositor with integrated supply unit, for warm materials
