MDM300

MDM300

Surface filling

Movable frame
Flexible depositing
Highly accurate deposit volume

Fill or cover the entire surface of your product

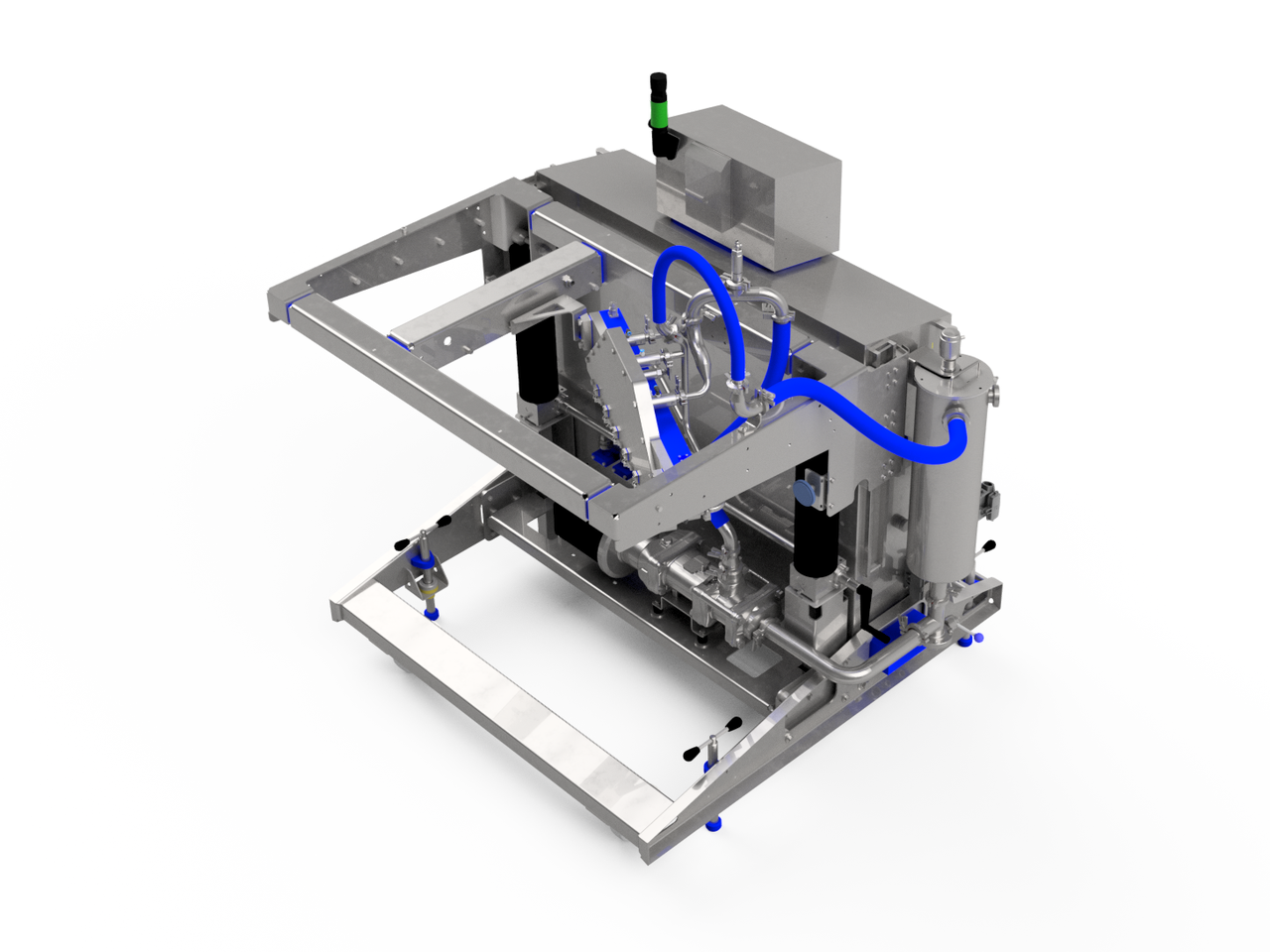

MDMV depositor for full-surface depositing on a frame with castors

The MDM300 is engineered to apply liquids in an even layer.

FoodJet systems handle conditions where standard depositors struggle: high line speeds, materials with inclusions, and tight visual tolerances.

Machine features

Check all your products

Movable frame

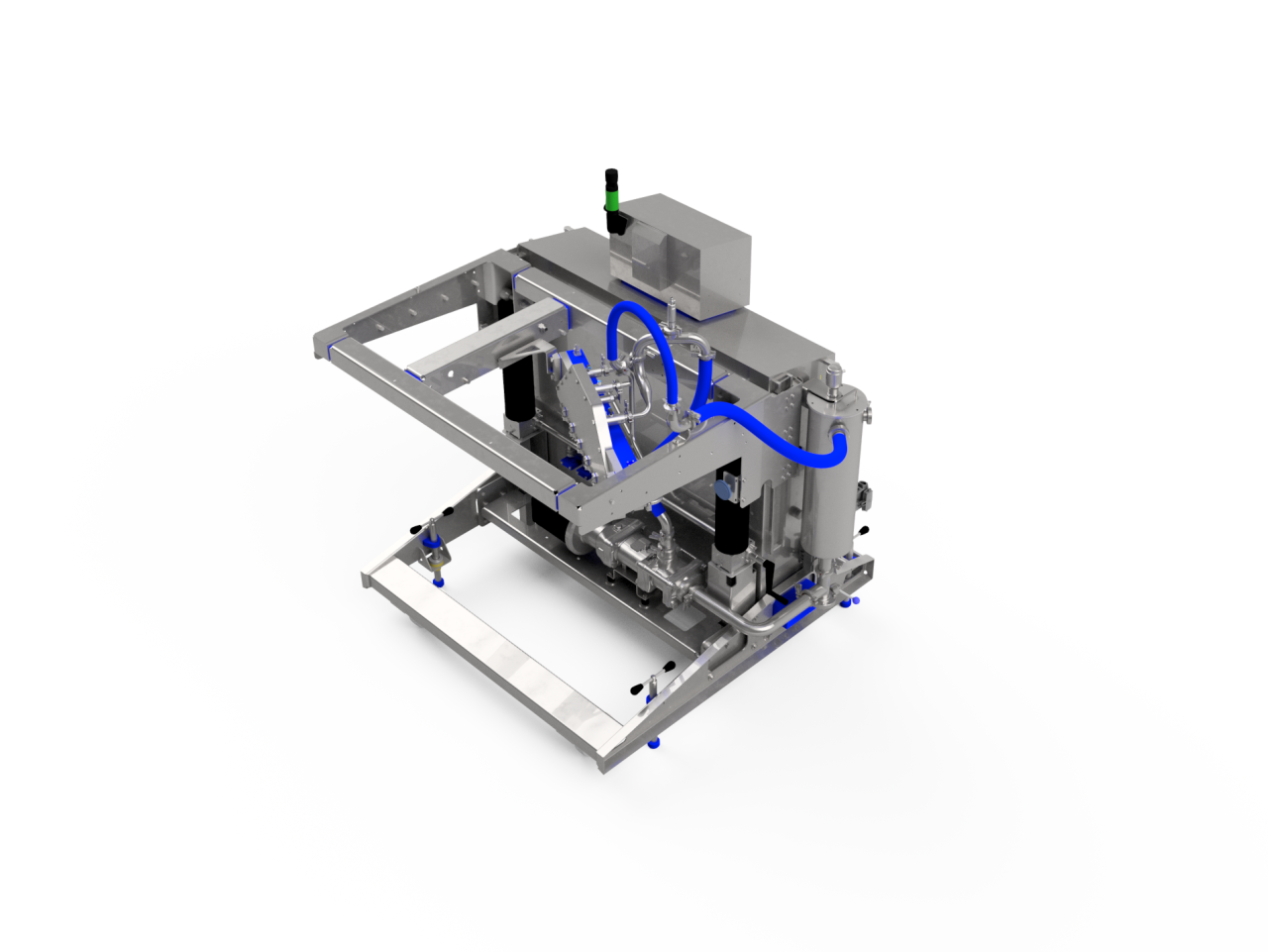

The MDM300 is a movable C-frame that holds one large depositing head. It contains the mass supply piping, pump, buffer tank, and control cabinet. The frame can be docked onto an existing conveyor system or onto the floor. The entire frame is IP67, sanitary design with minimal cabling on the outside. It is built for demanding production and cleaning conditions. The entire liquid foodstuff circuit is CIP-able without any need for disassembly.

Flexible depositing

The depositing head is directly positioned over the moving conveyors, so the liquid foodstuff can be accurately deposited on top of products being transported without the need to start/ stop.

Highly accurate deposit volume

Total volume control is done by means of the servo-driven volumetric pump, feeding a common rail to the head. Advanced control loops and active buffering allow the head to perform equally. The servo controller continuously calculates the pump’s required rotational position based on forward information of the patterns to be deposited. This way, the deposit volume is digitally controlled to your setting.

Machine details

Technical specifications

Machine class: Compact, trigger sensor
Max. effective width: 300mm
Head type: FJ31
Number of heads: 1
Vision guidance: No
Product detection: photosensor product detection and conveyor speed encoder
Control platform: FoodJet Control Platform (FJCP) on a Beckhoff industrial PC, 16" colour touchscreen HMI
Operation: HMI with pattern selection and operator settings
Power supply: 400V 3PH + N + GND, 50 Hz (Europe) / 480V 3PH + N + GND, 60 Hz (US)
Compressed air: 6-8 bar
Air quality: ISO 8573-1:2010 Class 7.4.4
